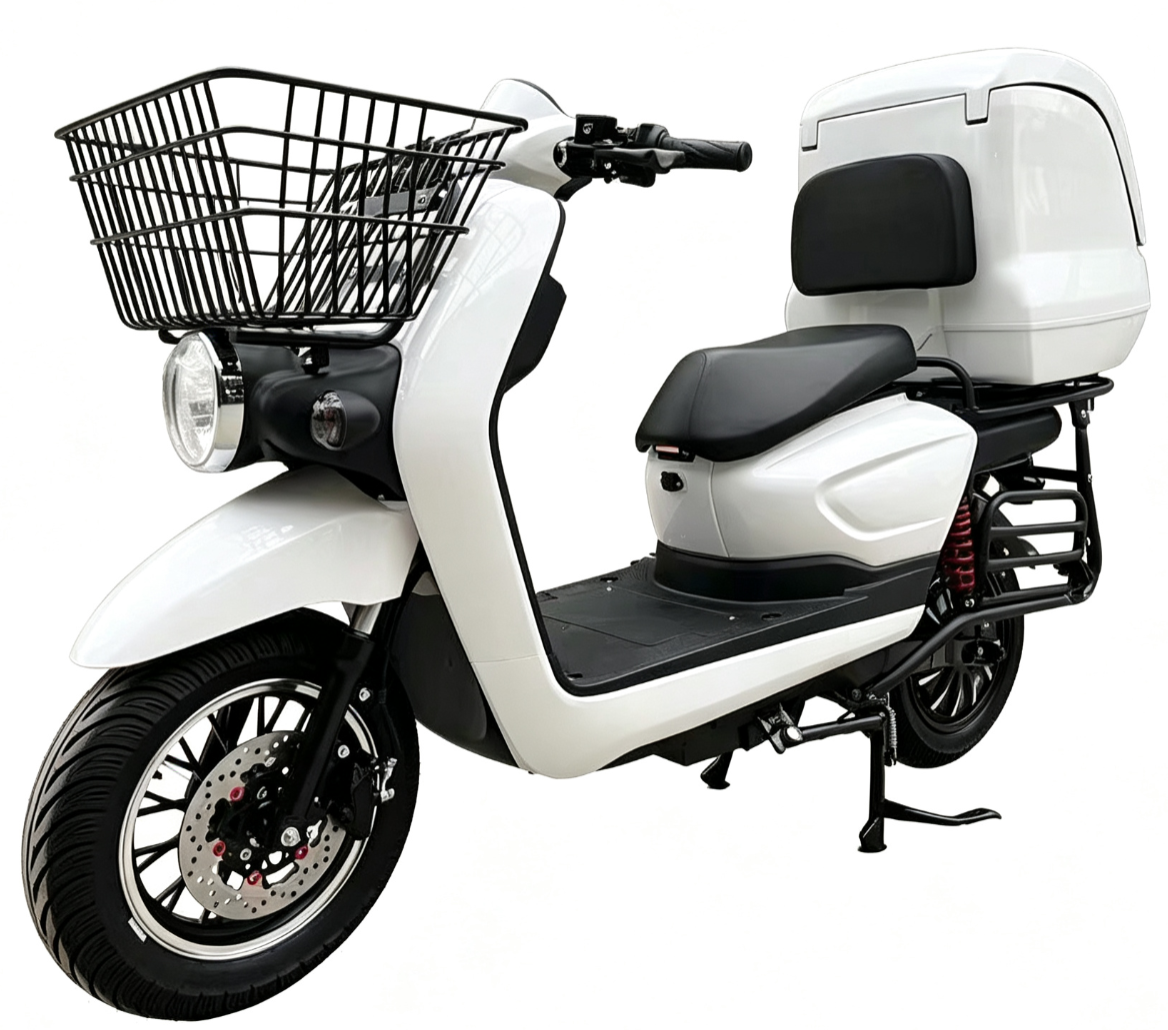

Delivery E-Bike with Large Top Box YP-M221

Electric Bicycles, Electric Motorcycles, Electric Scooters

Delivery E-Bike with Large Top Box YP-M221

Name: Delivery E-Bike with Large Top Box YP-M221
Brand: EV-Riding
SKU: Delivery E-Bike with Large Top Box YP-M221

large-top-box delivery e-bike with 80 km/h top speed and 130 km per charge: cost-effective for dealers, low running cost and easy spare parts, factory-direct from EV-Riding.

Send Inquiry

MOQ: 10 units (mixed models welcome)
Warranty: 1-year free replacement & 3-year free repair
Shipping: SKD (semi-knocked-down) or CKD (completely-knocked-down)

Shipping Options: SKD or CKD
Both options are available across the range:
· SKD (semi-knocked-down) — partially assembled units, ready for light final assembly on arrival.
· CKD (completely-knocked-down) — fully disassembled kits, for buyers who already run their own assembly line.

A delivery platform rather than a converted commuter. Rated 4.0 kW with 5.0 kW peak, twin 74V 45Ah packs and a 130 km working range, it is specified around a shift rather than a trip; the 21-degree climbing figure matters more than top speed in hilly districts.

Charging is the other half of the calculation – a standard 720W charger refills each pack in about five hours, an optional 1440W unit in three, and a 6,600W fast charger takes a pack from empty to 80 percent in half an hour. CBS braking, hydraulic damping and 100/80-16 / 110/80-14 tyres on a 148 kg chassis keep a loaded bike manageable. The standard version runs to 80 km/h, with a 105 km/h build available.

Specifications

Rated power	4.0 kW
Max power	5.0 kW
Battery capacity	74V / 45Ah x 2 pcs
Standard charger	720W – 5 hours (per pack)
Optional charger	1440W – 3 hours (per pack)
Super fast charger	6600W – 0% to 80% in 30 min (per pack)
Range	130 km
Max speed	80 km/h (105 km/h version available)
Climbing angle	21 degrees
Weight	148 kg
Dimensions (L x W x H)	2100 x 725 x 1200 mm
Wheelbase	1380 mm
Seat height	760 mm
Rims (Front / Rear)	2.15-16 / 2.5-14
Tires (Front / Rear)	100/80-16 / 110/80-14
Suspension	Hydraulic damping system
Brakes	CBS

Specifications are for reference and may be updated without notice. OEM/ODM configurations, colours and battery options are available — contact us for a quotation.

Packing: Carton Size: 290*125*188CM
