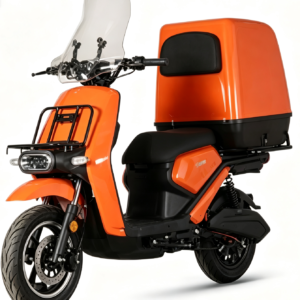

Family Commuter E-Bike YP-M223

Name: Family Commuter E-Bike YP-M223
Brand: EV-Riding
SKU: Family Commuter E-Bike YP-M223

family commuter e-bike with up to 105 km/h, 120–130 km range and CBS brakes for low running cost, simple maintenance and easy spare parts, factory-direct from EV-Riding.

Send Inquiry

MOQ: 10 units (mixed models welcome)
Warranty: 1-year free replacement & 3-year free repair
Shipping: SKD (semi-knocked-down) or CKD (completely-knocked-down)

Shipping Options: SKD or CKD
Both options are available across the range:
· SKD (semi-knocked-down) — partially assembled units, ready for light final assembly on arrival.
· CKD (completely-knocked-down) — fully disassembled kits, for buyers who already run their own assembly line.

Compact where it counts. The Mini variant of this platform keeps the 4.0 kW rated motor, the twin 74V 45Ah packs and a 120-130 km range, but trims the bodywork and brings the wheel size down to 90/90-12 – a machine that fits a household with limited parking and still runs at 105 km/h.

CBS braking and hydraulic damping are carried over unchanged, and the 21-degree climbing ability is the same as the larger version. Charging follows the same pattern: about five hours per pack on the standard 720W charger, three hours on the optional 1440W unit. Battery weight is excluded from the 74 kg figure.

Specifications

Rated power	4.0 kW
Max power	5.0 kW
Battery capacity	74V / 45Ah x 2 pcs
Standard charger	720W – 5 hours (per pack)
Optional charger	1440W – 3 hours (per pack)
Range	120-130 km
Max speed	105 km/h
Climbing angle	21 degrees
Weight	74 kg (battery not included)
Dimensions (L x W x H)	2100 x 300 x 1200 mm (windshield not included)
Wheelbase	1380 mm
Seat height	760 mm
Rims (Front / Rear)	2.15-12 / 2.5-12
Tires (Front / Rear)	90/90-12 / 90/90-12
Suspension	Hydraulic damping system
Brakes	CBS

Specifications are for reference and may be updated without notice. OEM/ODM configurations, colours and battery options are available — contact us for a quotation.

Packing: Carton Size: 210*30*120CM
