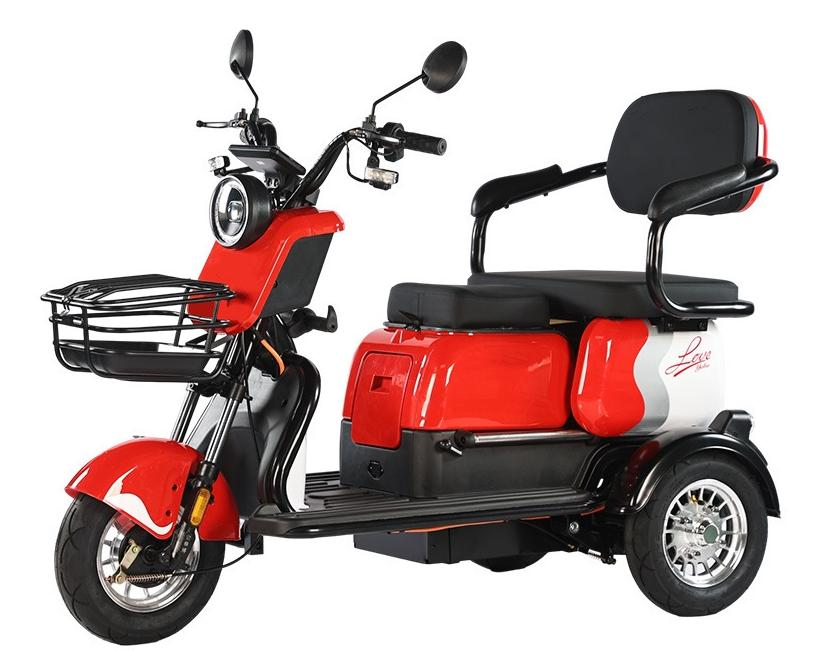

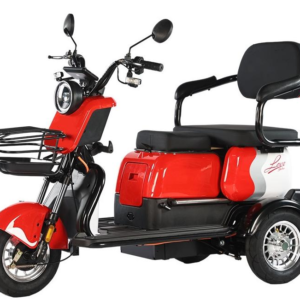

Two-Seater Electric Tricycle YP-T302
Cost-effective two seater electric tricycle with a travel range of 55 km and 48V battery platform: low maintenance, easy spare parts and factory-direct pricing.
Warranty: 1-year free replacement & 3-year free repair
Shipping: SKD (semi-knocked-down) or CKD (completely-knocked-down)
Both options are available across the range:
· SKD (semi-knocked-down) — partially assembled units, ready for light final assembly on arrival.
· CKD (completely-knocked-down) — fully disassembled kits, for buyers who already run their own assembly line.
One platform, three jobs. The base two-seater runs a 600W brushless motor for 35 km/h and about 55 km on a 48V 20Ah pack, with an LCD instrument, three speeds, forward and reverse, a removable battery compartment, a front basket, push-button start and two remote fobs.

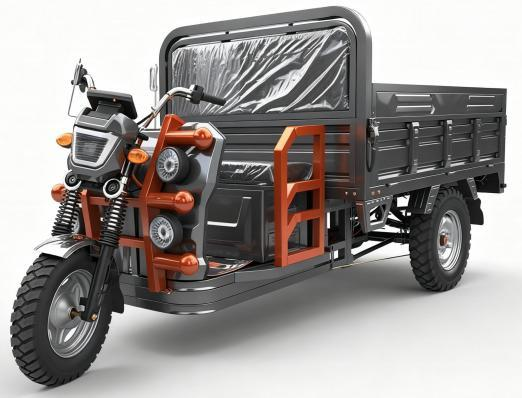

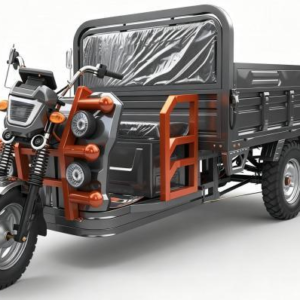

From there the same frame becomes a cargo unit – 1000W motor, 18 x 2-tube controller, a 1,600 x 1,100 mm carriage, a 2,015 mm wheelbase and a rated load of at least 1,000 kg – or a tuk-tuk: 3000W, a 60V 120Ah lithium pack, 120 km of range and 60 km/h, with a split keel frame under a tarpaulin roof, front, middle and rear double-row seating for a driver plus four, LED lights, a digital instrument cluster and a multimedia radio with Bluetooth and USB.
Specifications
| Motor | 600W brushless motor (cargo variant 1000W; Tuk-Tuk variant 3000W) |
|---|---|
| Controller | 12 tubes (cargo variant 18 x 2 tubes; Tuk-Tuk variant 3000W special tube) |
| Charging time | 6-8 hours |
| Max speed | 35 km/h (Tuk-Tuk variant 60 km/h) |
| Range | 55 km (Tuk-Tuk variant 120 km) |
| Battery | 48V 20Ah lead-acid (cargo variant 60V 20Ah / 72V 32Ah; Tuk-Tuk variant 60V 120Ah lithium) |
| Tire | 3.00-8 vacuum aluminium tire (cargo variant front 375-12 / rear 400-12; Tuk-Tuk variant 4.00-10 front / 125/65-12 rear) |
| Features | LCD screen display, three-speed adjustment, front and rear turn signals, rearview mirror, movable battery compartment, forward and reverse modes, front cargo basket, one-key start, dual remote controls |
| Cargo variant dimensions | Vehicle 3050 x 1180 x 1380 mm; carriage 1600 x 1100 mm; wheelbase 2015 mm; track width 960 mm; weight 215 kg; load capacity >= 1000 kg |
| Tuk-Tuk variant | Driver + 4 passengers, split-type keel frame + tarpaulin roof, LCD instrument, LED lights, multimedia radio with Bluetooth and USB, dual USB sockets, roof LED reading lights, front/middle/rear double-row seats |
| Optional | 60V 20Ah lead-acid battery |
| Battery options | Lead-acid 48V 20Ah (40-50 km) / 60V 20Ah (50-60 km) |
Specifications are for reference and may be updated without notice. OEM/ODM configurations, colours and battery options are available — contact us for a quotation.
Packing: Carton Size: 290*125*188CM
