Retro-Modern Scooter with Basket YP-M222
YP-M222__1

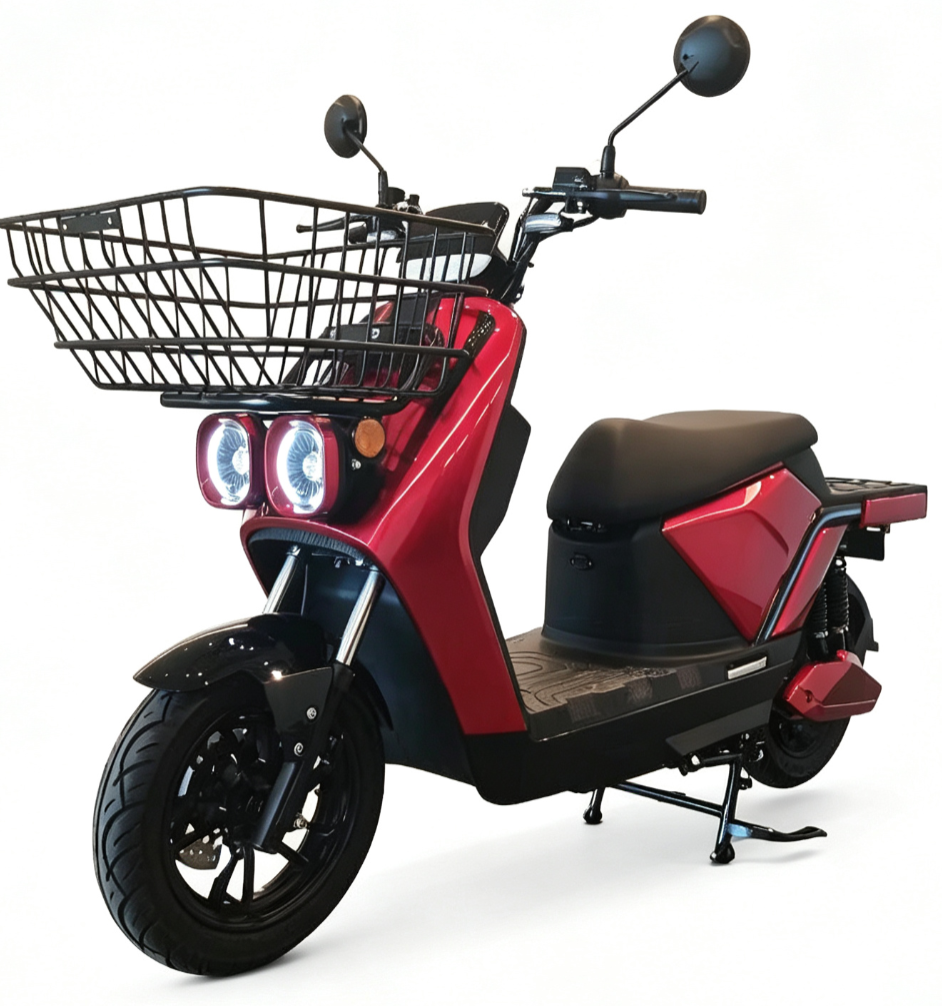

Retro-Modern Scooter with Basket YP-M222

retro modern e-scooter with basket engineered around a travel range of 180–190 km and braking via CBS brakes, factory-direct from EV-Riding.

Send Inquiry
MOQ: 10 units (mixed models welcome)
Warranty: 1-year free replacement & 3-year free repair
Shipping: SKD (semi-knocked-down) or CKD (completely-knocked-down)
Shipping Options: SKD or CKD
Both options are available across the range:
· SKD (semi-knocked-down) — partially assembled units, ready for light final assembly on arrival.
· CKD (completely-knocked-down) — fully disassembled kits, for buyers who already run their own assembly line.

A basket on the front and a 130 km range underneath is an unusual combination, and it is the point of this one: retro-modern lines wrapped around a 4.0 kW rated motor, twin 74V 45Ah packs and 5.0 kW of peak power.

At 148 kg with a 760 mm seat height, and its 100/80-16 front with 110/80-14 rear, it is a substantial machine that still takes a shopping basket seriously. CBS braking and hydraulic damping are fitted throughout, and the 21-degree climbing ability keeps it usable in hilly cities. The alternative specification raises the ceiling considerably: 3.0 kW rated with 6.5 kW peak, 180-190 km of range and a 110 km/h top speed. Recharging a pack takes roughly five hours on the supplied unit, or about three on the optional faster charger.

Specifications

Rated power4.0 kW
Max power5.0 kW
Battery capacity74V / 45Ah x 2 pcs
Standard charger720W – 5 hours (per pack)
Optional charger1440W – 3 hours (per pack)
Super fast charger6600W – 0% to 80% in 30 min (per pack)
Range130 km
Max speed80 km/h
Climbing angle21 degrees
Weight148 kg
Dimensions (L x W x H)2100 x 725 x 1200 mm
Wheelbase1380 mm
Seat height760 mm
Rims (Front / Rear)2.15-16 / 2.5-14
Tires (Front / Rear)100/80-16 / 110/80-14
SuspensionHydraulic damping system
BrakesCBS
Alternative version3.0 kW rated / 6.5 kW max, range 180-190 km, max speed 110 km/h

Specifications are for reference and may be updated without notice. OEM/ODM configurations, colours and battery options are available — contact us for a quotation.

Packing: Carton Size: 290*125*188CM
