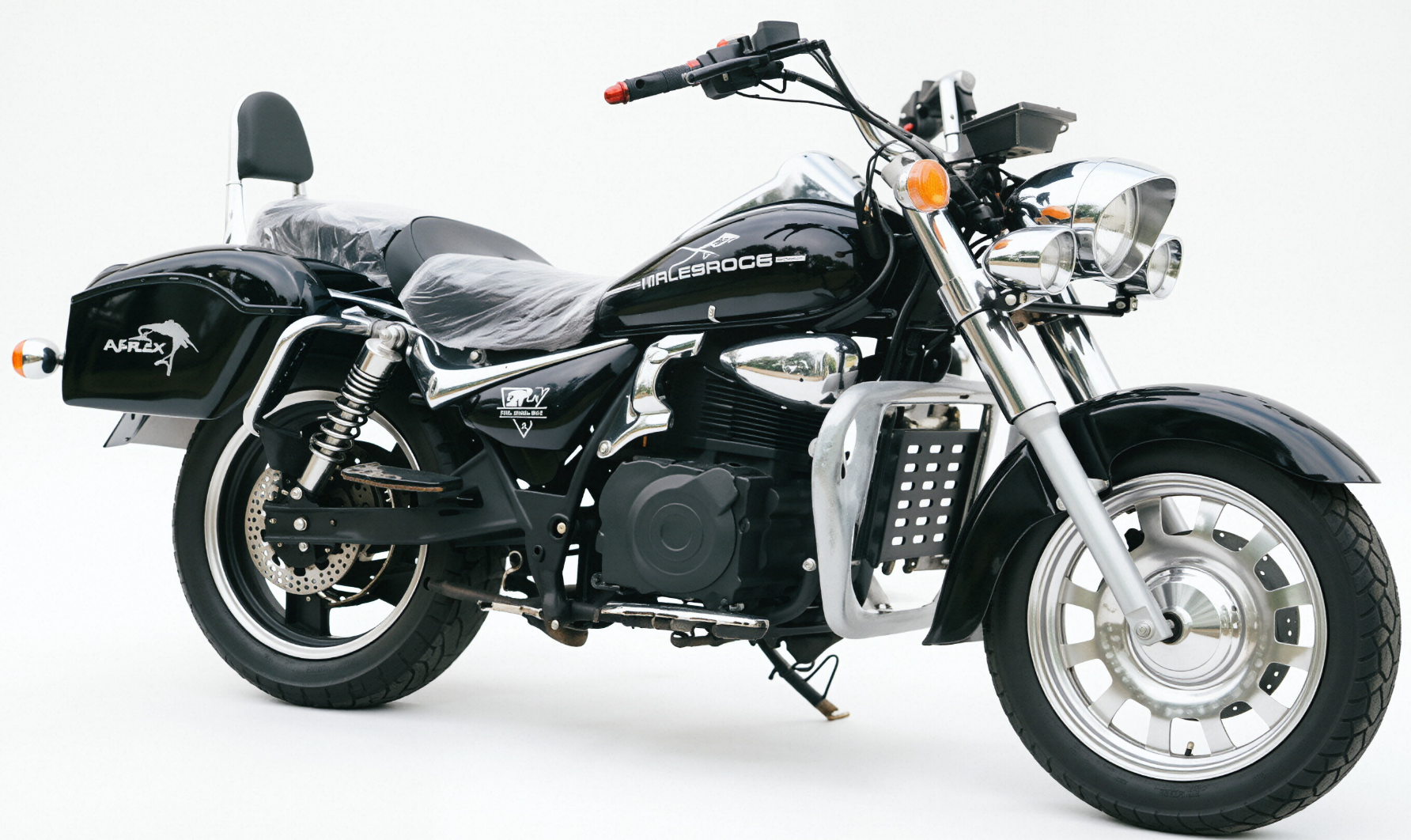

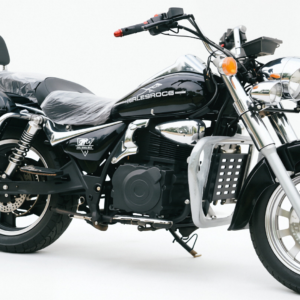

American Cruiser E-Motorcycle YP-M217
YP-M217__1

American Cruiser E-Motorcycle YP-M217

american cruiser e-motorcycle built for Southeast Asia mixed roads and daily commuting: 90–120 km/h top speed, a 3.0 kW motor and disc brakes, supplied factory-direct by EV-Riding.

Send Inquiry
MOQ: 10 units (mixed models welcome)
Warranty: 1-year free replacement & 3-year free repair
Shipping: SKD (semi-knocked-down) or CKD (completely-knocked-down)
Shipping Options: SKD or CKD
Both options are available across the range:
· SKD (semi-knocked-down) — partially assembled units, ready for light final assembly on arrival.
· CKD (completely-knocked-down) — fully disassembled kits, for buyers who already run their own assembly line.

Cruiser geometry, and the numbers show it: a 760 mm seat height and a 1,495 mm wheelbase – both the highest in the family – on a 2,080 mm body weighing 152 kg. That longer wheelbase is what gives it the relaxed straight-line feel a cruiser is bought for.

A 3.0 kW hub motor on 72V returns 90 km/h, with a 5.0 kW hub and 150 controller option reaching 120 km/h. Stopping is by disc front and rear, with hydraulically damped forks and the 140/70-17 rear paired to a 110/70-17 front on an aluminium hub. Charging takes three to eight hours, and battery options span 72V 32Ah and 45Ah lead-acid up to 80Ah lithium for 140-150 km.

Specifications

Dimensions (mm)2080 x 760 x 1140
Wheelbase (mm)1495
Seat height (mm)760
Net weight152 kg
Motor power3.0 kW (standard hub motor)
Voltage rating72V
ControllerFardriver
Motor model17ZW7269341YA
Max speed90-120 km/h
HubAluminium wheel hub
BrakesDisc brakes (front / rear)
Front shock absorberHydraulic shock absorption
Tires (Front / Rear)110/70-17 / 140/70-17
Packing size (mm)1960 x 550 x 1150
Charging time3-8 hours
Standard configurationHub motor 3000W + rear drive 100 controller, speed 90 km/h
Optional configurationHub motor 5000W + rear drive 150 controller, speed 120 km/h
Battery optionsLead-acid 72V 32Ah (50-60 km) / 45Ah (80-90 km); lithium 72V 30Ah (50-60 km) / 40Ah (70-80 km) / 50Ah (90-100 km) / 60Ah (110-120 km) / 80Ah (140-150 km)

Specifications are for reference and may be updated without notice. OEM/ODM configurations, colours and battery options are available — contact us for a quotation.

Packing: Carton Size: 196*55*115CM
